Male Straight Connector Molded Cable 4Pin M5 Circular Connector For Sensor

Brand Name : RIGOAL

Model Number : M5 waterproof connector

Certification : CE,Rohs

Place of Origin : Guangdong, China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 14

Packaging Details : m8 4pin female ip67 waterproof panel mount solder connector 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Certificate : CE/Rohs/REACH

Jacket Material : PVC/PUR

Mounting Type : Staight,90 Degree Right Angle Elbow

Wire Length : Customize

Conductor Material : Brass/Gold

IP degree : IP67

Standard : IEC 61076-2-105

Insulation resistance : ≥100MΩ

Contact Now

Electrical HDMI cable M5 stype male femalale

Description
Degree of protection IP67
3 4 5 8 10 12 poles are available
Anti-vibration locking screw design
RoHS & REACH Compliance



Electrical Data
Rated voltage:30V
Insulation resistance:100MΩ
Rated current::4A
Contact resistance:≤5mΩ
Ambient temperature:-20°C~+80°C

Connector Specification

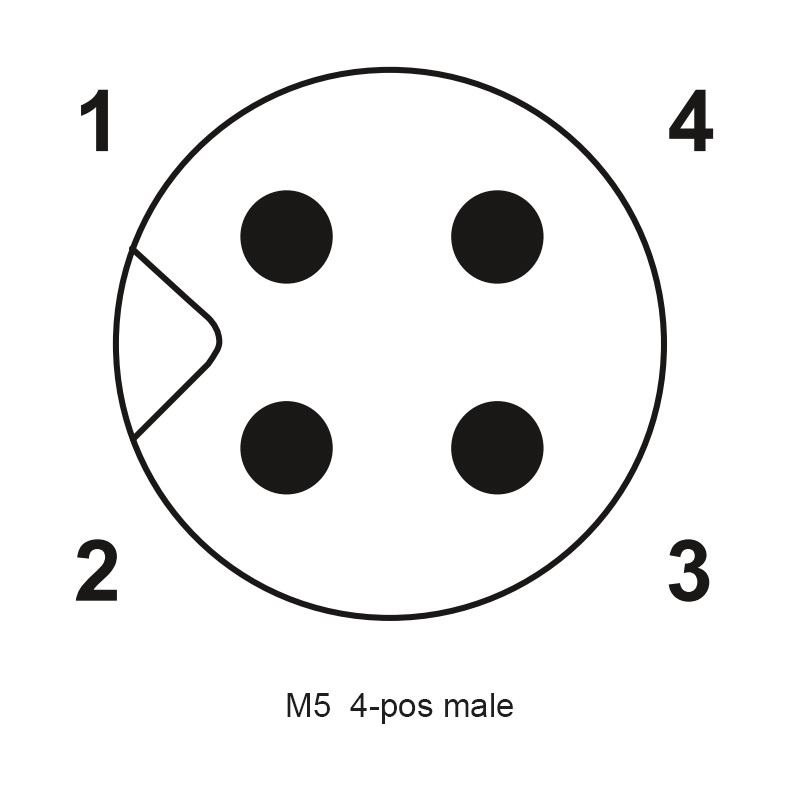

Polarity:3pins, 4pins,5pins,8pins,12pins
Overmold:Transparent TPU
Contacts:Brass with gold plated
Insert:TPU+GF
Coupling nut/screw:Brass with nickel plated

Degree of protection:IP67 in locked condition

Parameter Value
Plug body TPU/Black
Coupling nut Brass/Nickel
Contact carrier PA/Black
Pin Brass/Gold
O-ring NBR
IP degree IP67
Insulation ≥10 9Ω
Forward resistance ≤5mΩ
Rated current 1A
Rated voltage 60V
Pollution degree 3
Temperature range -40…80 ℃
Mechanical operation ≥100
Maximum cable diameter 3.8mm

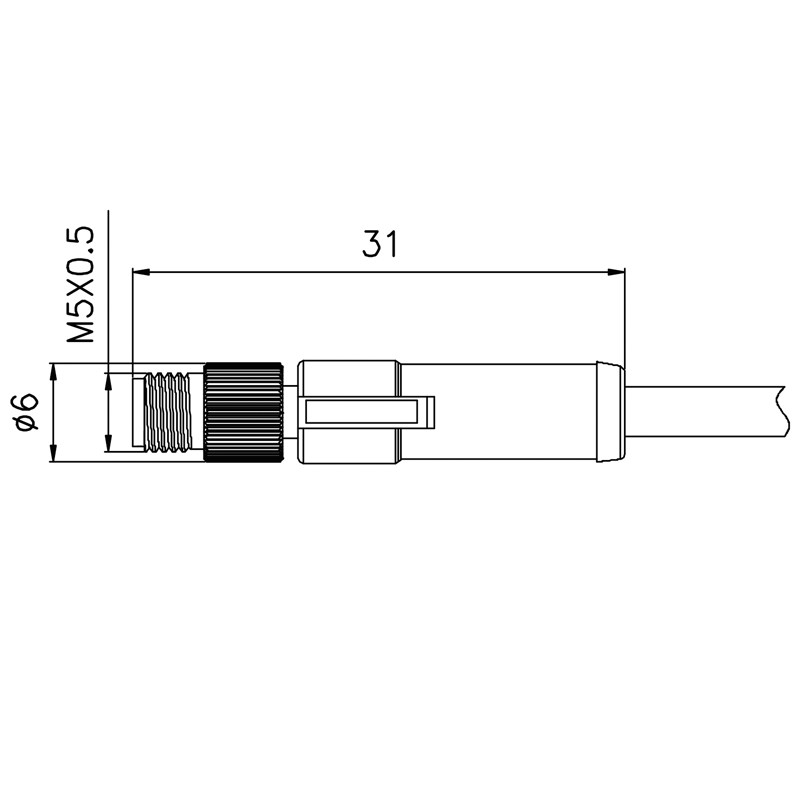

Male Straight Connector Molded Cable 4Pin M5 Circular Connector For SensorMale Straight Connector Molded Cable 4Pin M5 Circular Connector For SensorMale Straight Connector Molded Cable 4Pin M5 Circular Connector For SensorMale Straight Connector Molded Cable 4Pin M5 Circular Connector For SensorMale Straight Connector Molded Cable 4Pin M5 Circular Connector For Sensor


Our Services

Customers want

1/. High quality and competitive price

2/. Stable delivery and excellent service

3/. Reliable warranty and after-sales service

We provide

1/. 100% quality assurance, all broke parts can be guaranteed within 30 days after received.

2/. According to customer requirement, provide 10 years warranty.

3/.Repairs parts are available within 10years; EOL products will be always informed to you.

4/.Supply free LOGO to the surface of over-molded connectors upon customers' requirement.


Product Tags:

4Pin Male Straight Connector



M5 Male Straight Connector



4Pin M5 Circular Connector
