Ip67 12 Pole Plug To Socket M16 Miniature Cable Assemblies Straight Pin Molded Plug

Name: Ip67 12 Pole Plug To Socket M16 Miniature Cable Assemblies Straight Pin Molded Plug
Brand: RIGOAL
Price: 1 USD

Wholesale Ip67 12 Pole Plug To Socket M16 Miniature Cable Assemblies Straight Pin Molded Plug from china suppliers

Brand Name : RIGOAL

Model Number : M16

Certification : CE,Rohs

Place of Origin : Shen zhen, China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 14

Packaging Details : m16 4pin female ip67 waterproof panel mount solder connector 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Ambient temperatur : -25℃~+85℃

Voltage Rating : 250 V Ac/Dc

Application : Power

Body Orientation : Straight

Termination Method : Screw

Contact Now

Ip67 12 Pole Plug To Socket M16 Miniature Cable Assemblies Straight Pin Molded Plug

Product Description

Available Description

Stainless steel screw is available

IP67/IP68, RoHS, REACH, UL certificate

Generally Description

Connector Series: M16

Standard: IEC 61076-2-101

Coding: A

Pins: 2/ 3/ 4/5/6/7/8/9-----24pins

Gender: Male&Female

Connector Design: Panel mount

Connector Locking System: Fix screw

Waterproof Rating: IP65/IP67

Ambient Temperature: -30°C~+90°C

Material

Connector Body: PA66+GF

Contacts: Phosphorus copper with gold plated

Screw/Nut: Brass with nickel plated

Waterproof 0-ring: FKM

Glue: Black epoxy resin

Wire Jacket: PVC

Electrical data

Rated Current: 3A

Rated Voltage: 250V

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥100MΩ

Product parameter

Ip67 12 Pole Plug To Socket M16 Miniature Cable Assemblies Straight Pin Molded Plug

BAIRUI M16 male female connector waterproof connector
1	Model No.	M16-12A-AP/M16-12A-AS
2	Material	Connector Body	Nylon(PA66)+GF UL94V-0 1/16'
3		Contact	Brass with Gold Plated
4		Sealing	Silica Gel
5	Property	Current Rating	3A
6		Voltage Rating	250V
7		Contact Resistance	<10mΩ
8		Insulation Resistance	10MΩ at DC 200V
9		Breakdown Voltage	1.5KV/1minute
10		Temperature Rating	-30°C~+9°C
11		Durability(Plug/Unplug)	3000 times
12		Waterproof Rating	IP67
13		Cable Max. Diameter	5.5 mm
14		Pins Range	2,3, 4, 5----24Pole
15	Certificate	CCC; CE; Rohs

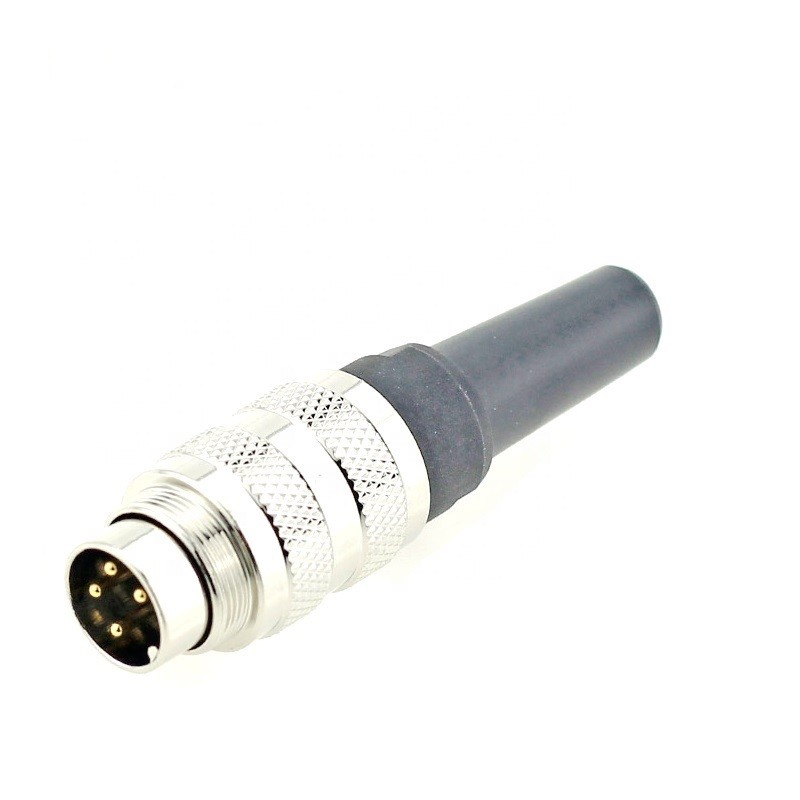

Ip67 12 Pole Plug To Socket M16 Miniature Cable Assemblies Straight Pin Molded Plug Images
