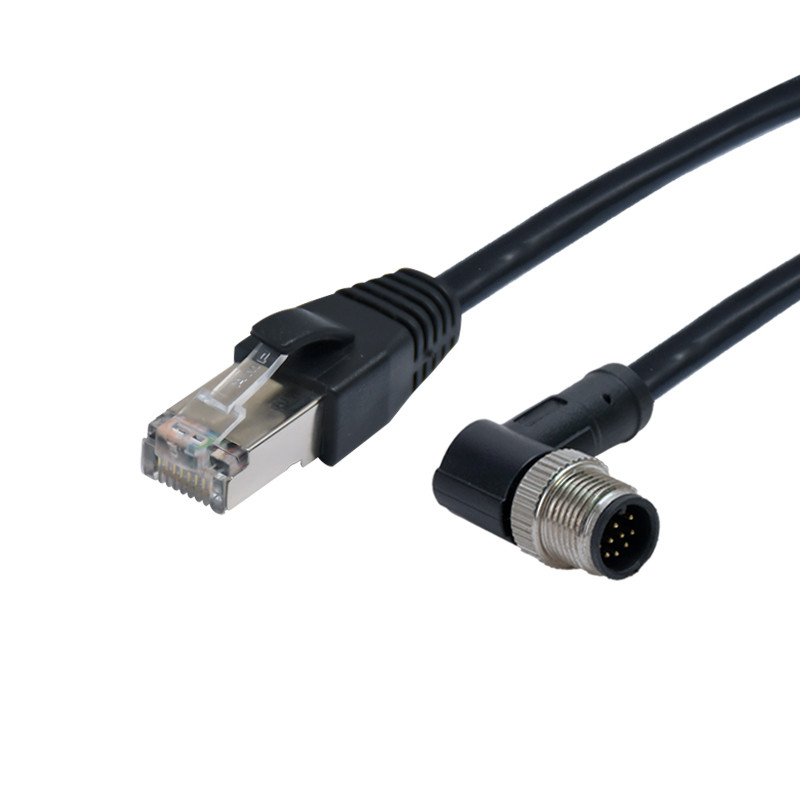

1.5A Industrial Ethernet Connector RJ45 Cable To M12 Molding Female A Coding Connector

  • 1
  • 2

Brand Name : Rigoal

Model Number : RJ45 to m12 connector

Certification : CE , Rohs

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 10-15 working days

Packaging Details : PE bag and Cartons

Connector type : RJ45 to m12

Connector gender : female to female

Current rating(A) : 1.5A

Voltage rating : 30V ac, 42V dc

Performance : Cat 5e

IP Rating : IP68

M12 contacts : 4pins

Type : A code

Conductor types : 24-28AWG, solid or multi- stranded

Contact resistance : 10mW max.

Contact Now

Industrial Ethernet Connector RJ45 Cable To M12 Molding Female A Coding Connector

Product description

Dust and waterproof sealing when mated
Data rate up to 100MHz
Good chemical resistance, flame retardant
High noise immunity and EMI protection
Maintains shielding
Protection from abuse and mis-mating
Secure, proven locking system
Ability to ‘field’ terminate
Direct PCB mount panel connector
Simple termination
Continuous screening of panel mount connector

Electrical data

Moulding:Polycarbonate

Contact material: Phosphor Bronze

Contact plating: 50 micron gold

Operating Temperature: –40°C to +70°C

Mating cycles: 1,000 cycles Compliant

Current rating: 1.5A

Voltage rating: 30V ac, 42V dc

Contact resistance:10mW max.

Performance: Cat 5e

Conductor types: 24-28AWG, solid or multi- stranded

Degree of Protection: IP68

Product Name Custom Cat6 26AWG PUR cable ethernet adapter M12 to RJ45 cable
Material Brass
Color Black
Orientation Straight or Right angle
Termination Solder
Coupling Threaded coupling
Category Pin type or Hole type
Gender male to male
Current rating 1.5A


Product photos

1.5A Industrial Ethernet Connector RJ45 Cable To M12 Molding Female A Coding Connector

1.5A Industrial Ethernet Connector RJ45 Cable To M12 Molding Female A Coding Connector

1.5A Industrial Ethernet Connector RJ45 Cable To M12 Molding Female A Coding Connector

Often used to Outdoor light boxes, Construction machinery, Iron and Steel production equipment, Power equipment, Mining machinery, Ship machinery, Auto equipment, Automatic production equipment, Temperature transmitter, Hydraulic machine, Sensors, Electromagnetic valve, Instruments and meters, Pressure transmitter, etc.
