SP21 IP68 9p Circular Plastic Connectors PC Nylon66 Panel Mount 20awg

Name: SP21 IP68 9p Circular Plastic Connectors PC Nylon66 Panel Mount 20awg
Brand: RIGOAL
Price: 1 USD

Brand Name : RIGOAL

Model Number : sp21 waterproof connector

Certification : CE ROHs

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Rated Current : 5A-13A

Max Temp : 260 degreee

Poles : 2 3 4 5 6 7 9pin

Shell material : PC, Nylon66, fire resistance

Cable outer diameter range : 7mm-12mm

Rated voltage : 400V,500V

Mating cycle : 500

Contact Now

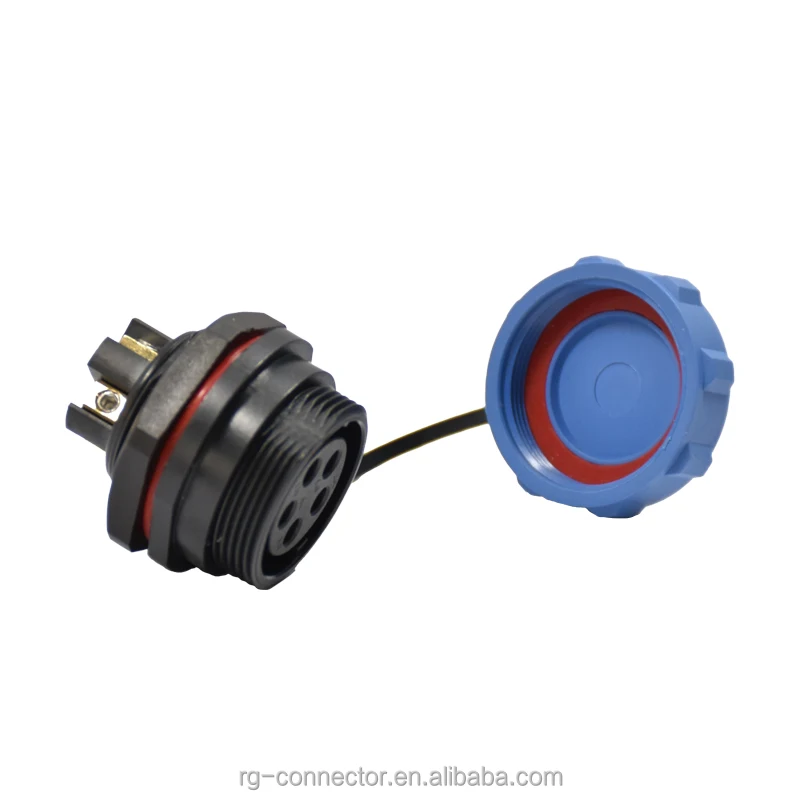

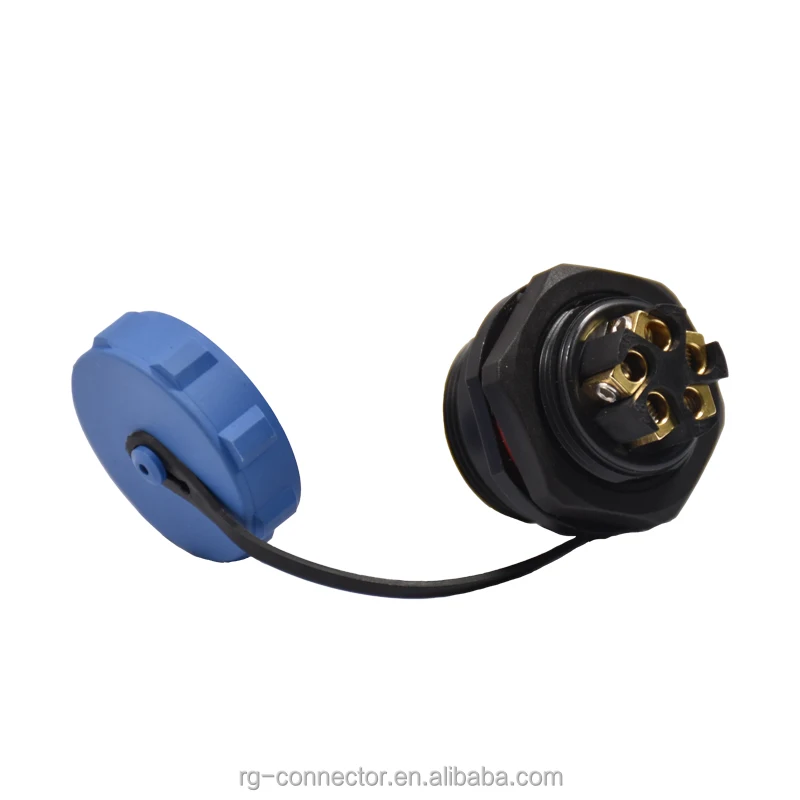

IP68 SP21 9pin Female Panel Mount Socket Connector

Product Description

SP21 IP68 9p Circular Plastic Connectors PC Nylon66 Panel Mount 20awg

SP series of threaded IP68 connectors are perfect for your application.This particular model has a bigger and
 stronger shell. That coupled with the IP68 rating excels in harsh environments. When choosing a female connector, this version
 should really be one you consider,morever, These robust connectors can be used for both cable to cable (inline) and cable to
 panel-mount connections. With its IP68 rating, each product is excellent within harsh environments, giving you peace of mind. All
 models are highly reliable and excellent qualit

Solder type
Have 2,3,4,5,6,7,9 poles for option.
Small bulk with light weight,easy and simple to operating
Temperature Range:-20°C~+80°C
This aviation plug is IP68 sealing type,can provide secure and connectivity in harsh environment.
If there is a require about dustproof and waterproof,this product can be used a lot.
Can do process with cable(18awg,20awg,22awg,) if you have requiements.
