Pa66 Insert M12 Waterproof Connector Crimping Solder 8 Pin 90 Degrees CuZn

Name: Pa66 Insert M12 Waterproof Connector Crimping Solder 8 Pin 90 Degrees CuZn
Brand: RIGOAL
Price: 1 USD

Wholesale Pa66 Insert M12 Waterproof Connector Crimping Solder 8 Pin 90 Degrees CuZn from china suppliers

Brand Name : RIGOAL

Model Number : m12 waterproof connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

coupling : threaded coupling

insert material : pa66+gf20%

termination : crimping/solder

rated voltage : 150V-260V

shell material : zinc alloys with nikelplate

contact material : copper(silverplated/gold)

cable diameter : ≤4mm~≤8.0mm

Available pin coded : A B D X coded

Contact Now

90 Degrees Metal M12 3 4 5 8 12 Pin Male Field Wierable Connector M12 Male Shield Waterproof Coinnector

Product Description

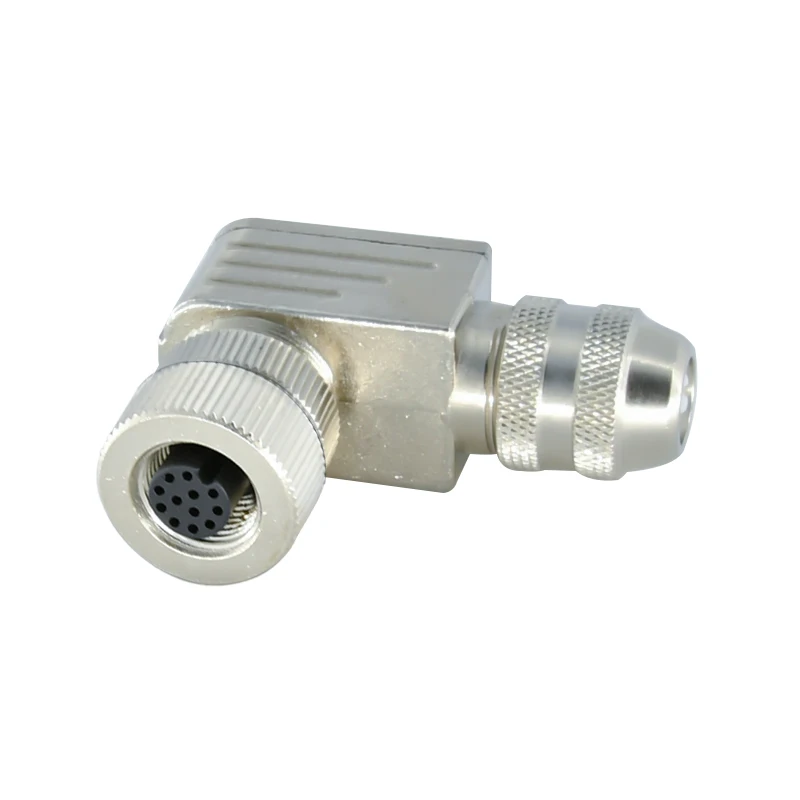

Pa66 Insert M12 Waterproof Connector Crimping Solder 8 Pin 90 Degrees CuZn

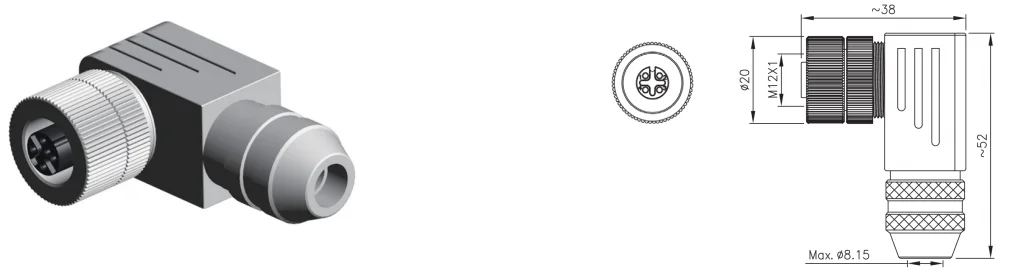

Product structure:

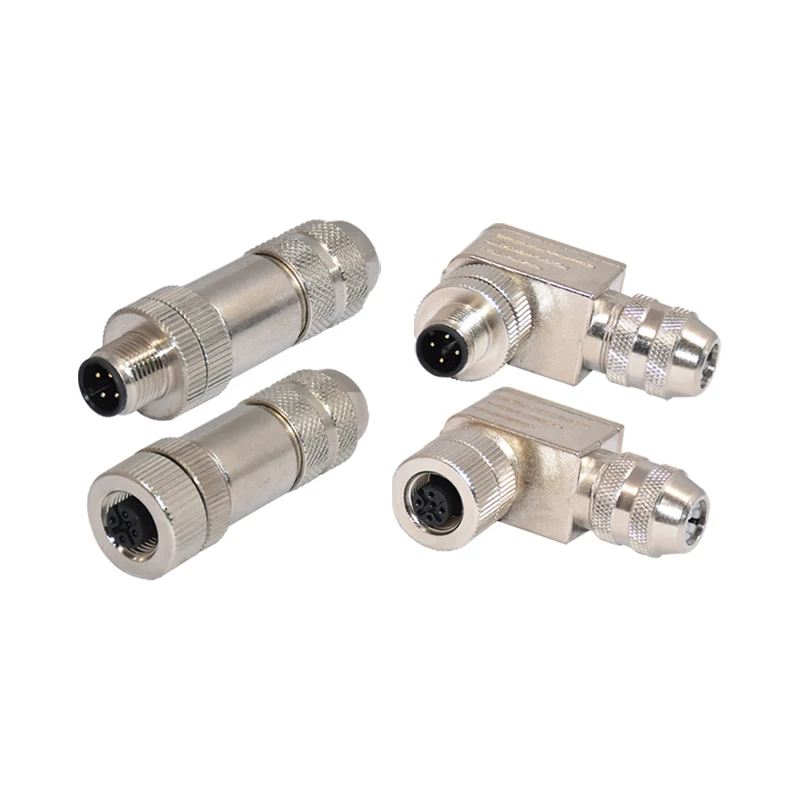

connection thread M12X1, there are two kinds of straight type and 90 degree bend type.3 pins 3 holes, 4 pins 4
 holes, 5 pins 5 holes, 8 pins 8 holes, 12 pins 12 holes waterproof connector, matching cable length optional, cable color is
 black, gray, yellow, orange, connector color: black, gray, yellow, orange, etc.Unshielded cable or shielded cable is optional.


Protection performance: IP67 or ip68 above.Production in line with the ROHS environmental protection requirements, through the CE
 directive certification

Product Tags:

Pa66 Insert M12 Waterproof Connector

Crimping Solder M12 Waterproof Connector

CuZn Male Shield Connector

Pa66 Insert M12 Waterproof Connector Crimping Solder 8 Pin 90 Degrees CuZn Images
