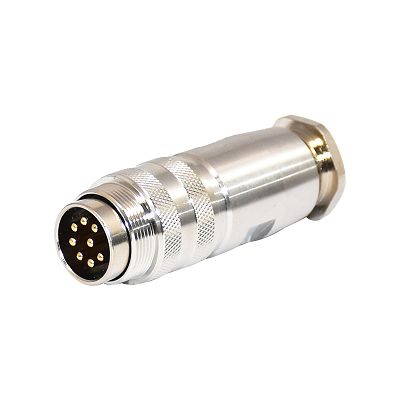

Metal power assembly waterproof connector
| Electrical & Mechanical data | M16 Din circular connector |
| Stardard | IEC 61076-2-106 |
| Rated current | 5a |
| Rated voltage | 500v |
| Couplingg nut | Brass with nikel palsted screw |
| Orientation | straight |
| IP rating | IP67 |
| Connector contacts | Brass with gold plated |
| Ambient temperature | -25°C ~ + 95°C |
M16 CONNECTORS
With a rugged metal housing and environmental protection rating of IP67 when mated, this robust M16 DIN connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.
M16 series connector equivalent as Binder eries 423, 723 and 425 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
Rugged metal shells
Straight or right-angle cable connector
Right-angle cable connectors adjustable in 4 radial positions
Excellent 360° EMI shielding and IP67
Internal strain relief
2 to 24 contacts,gold(Au)- or silver(Ag)-plated
DIN EN 61076-2-106
M16 Straight female male 2pin 3pin 4pin 5pin 6pin 7pin 8pin 12pin 14pin 16pin 19pin 24pin rear panel mount connector
Advantages:
1. High degree of protection IP67, safe to use on site
2. High quality gold-plated solid phosphor bronze contacts, ≥ 600 times mating life
3. Anti-vibration locking screw design
4. Support samples, retail and bulk orders
Certifications
The connector products are widely used in bus components, ethernet, solenoid valvees, press stiches, motors-control, protoelectric barries, flow monitoring devices, proximity switches, and sensors in hydraulic, pneumatic and automation industries.
Package&Shipping:
Packaging
1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton
Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm
2. OEM/ODM package is avaiable
3. According to customer choice.
Shipping
We can according to customer request choose different ship way,which more converence ,which we will choose!
1: Do you provide samples ? Is that free or need to charge.
Yes, samples supply is acceptable. Samples cost depends on the requested quantities.
2: How long is your delivery time?
Normally it will take 1-3 days if the goods are in stock. Delivery time is about 7-10 days if arranged production. It also depends on the order quantity.
3: What is your terms of payment ?
We accept bank transfer, T/T, Paypal & Western Union, or other payment methods.
4: What is your after-sales service ?
All our the customers can enjoy the after-sales service for "one year quality warranty, and lifetime technical support".
