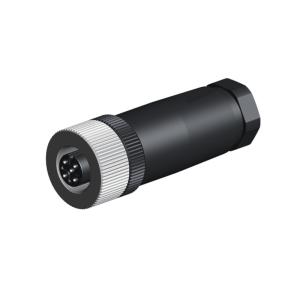

M12 female install waterproof connector
Specifications:
Generally Description:
Connector Series: M12
Standard: IEC 61076-2-101
Coding: A
Pins: 5
Gender: Female
Connector Design: Panel mount
Connector Locking System: Fix screw
Waterproof Rating: IP68
Ambient Temperature: -25°C~+85°C
Material:
Connector Body: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Glue: Black epoxy resin
Wire Jacket: PVC
Electrical data:
Rated Current: 4A
Rated Voltage: 60V
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
Product diagram
 | Product Name: M12 female connector angled plastic assembly waterproof connector Model number:M12P-D-S Series:M12 Connector
Core number:3,4(A/B/D),5,8Core
Authentication:CE,RoHS
Waterproof:IP67/IP68 |
Certifications
Our Services
To Be Your The Best Connection Expert
1) Low cost but good quality in ip67 waterproof in locked condition with ISO9001 management under efficient service
2) Provide free samples within 3 working days if it is normal product with existing tooling
3) Effective communication and rapid response
4) Early design-in capability,OEM, ODM are available
5) Globalization, localization of operation and management
6) 5 years quality assurance.
Package&Shipping:
1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:40*30*30cm
2. OEM/ODM package is available
3. According to customer choice.
Q1: Are you a manufacturer?
A1: We are manufacture, we can provide one-stop station service for connectors and cables with factory price.
Q2: How about your quality?
A2: We guaranteed that 100% in good quality, the price will be nicer than other same suppliers.
Q3: After-sales service
A3: All the inquiry will be response within 24 hours, the commucation will be effective.
Q4: Is it customizable?
A4: We offer you with OEM oders but with smaller quantity than others.
