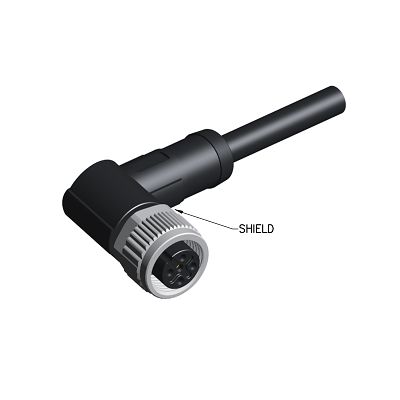

M12 female shileded molding cable
Characteristics of M12 Series

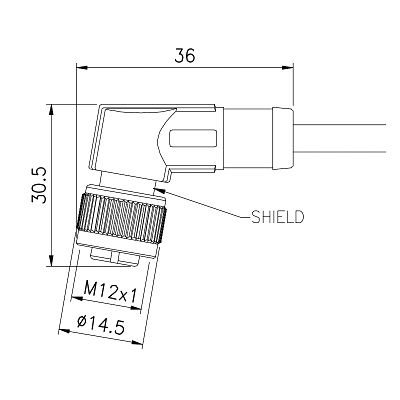

Product diagram
Advantages :
1. High degree of protection IP67, safe to use on site
2. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times mating life
3. Anti-vibration locking screw design
4. Support samples, retail and bulk orders
Description
Degree of protection IP67
3 4 5 8 10 12 poles are available
Anti-vibration locking screw design
RoHS & REACH Compliance
Electrical Data
Rated voltage:30V
Insulation resistance:100MΩ
Rated current::4A
Contact resistance:≤5mΩ
Ambient temperature:-20°C~+80°C
Connector Specification
Polarity:3pins, 4pins,5pins,8pins,12pins
Overmold:Transparent TPU
Contacts:Brass with gold plated
Insert:TPU+GF
Coupling nut/screw:Brass with nickel plated
Degree of protection:IP67 in locked condition
Certifications
Our Services
Customers want
1/. High quality and competitive price
2/. Stable delivery and excellent service
3/. Reliable warranty and after-sales service
We provide
1/. 100% quality assurance, all broke parts can be guaranteed within 30 days after received.
2/. According to customer requirement, provide 10 years warranty.
3/. Repairs parts are available within 10years; EOL products will be always informed to you.
4/. Supply free LOGO to the surface of over-molded connectors upon customers' requirement.
Package&Shipping:
Packaging
1.Our general packing:erery pcs in one samll PE bag,then add the label. many pcs(100 or 200 etc)in one with waterproof PE bag contons.samll size:12mm*12mm. Carton size:46*30*30cm
2.According to customer request.
Shipping
We can according to customer request choose different transport way,which more converence ,which we will choose!
Product Tags:
|
|
Shileded Molding Cable M12 Female Connector IEC 61076-2-101 CCC Images
|
