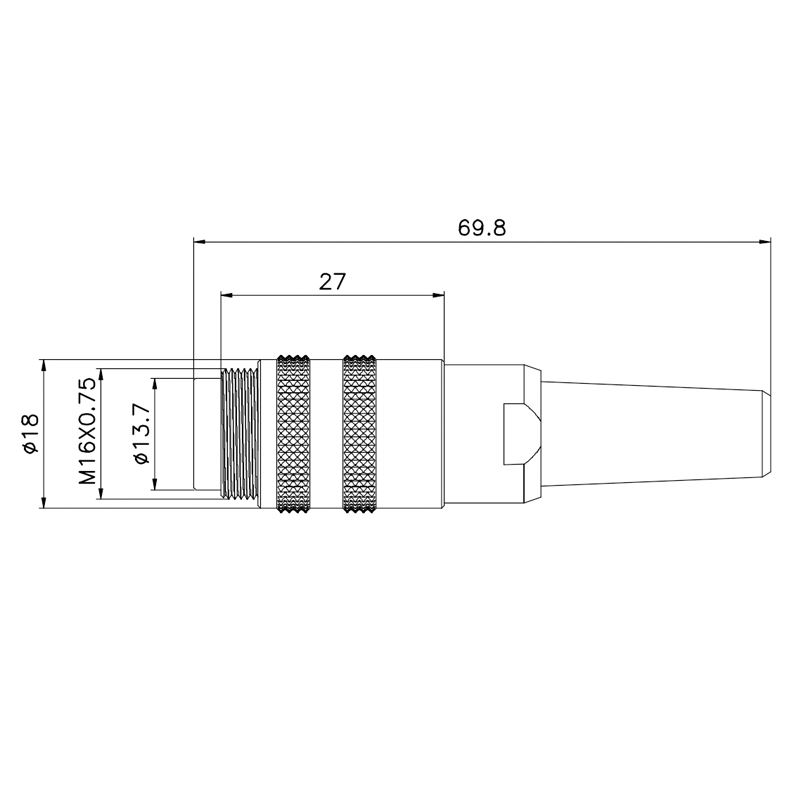

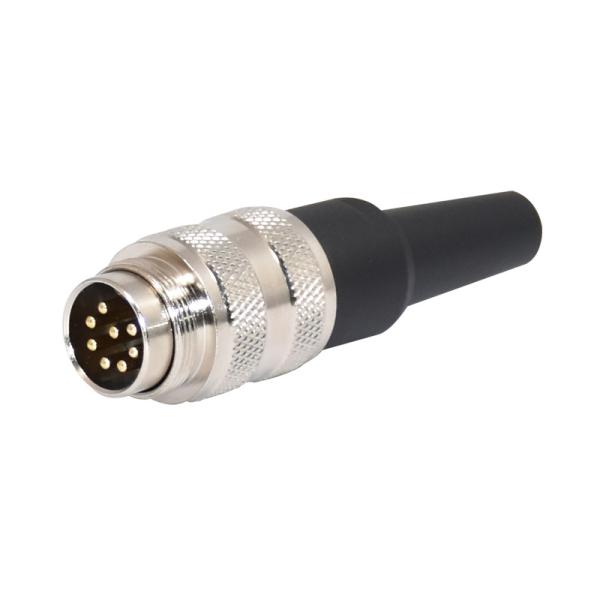

M16 8PIN Straight Plastic Waterproof Round Connector
Our company has each kind of machine-finishing equipment. Various machining and test equipment form several lines can produce over 800,000 couples of connectors. Our main products include copper metal connectors,circular connectors,heavy duty connectors.waterproof connectors,5015 connectors and so on.
• Metal locking ring; screw locking according to DIN EN 60130-9 / IEC 60130-9

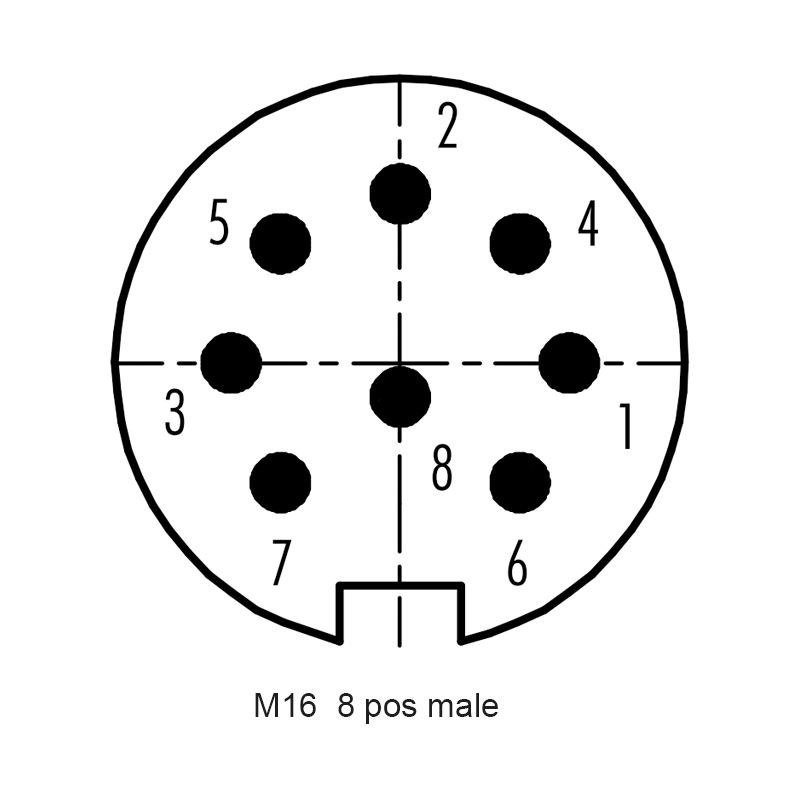

• Number of contacts: 2 – 8, 12 and 14 contacts
• Internal strain relief
• Good shielding effectiveness when mated and locked
• Male and female cable connectors
• Straight or right angled
• Solder connection: 2 – 8, 12 and 14 contacts
• Crimp connection: 2 – 8 contacts
• With cable sleeve for max. cable diameter 6 mm, or
With cable glands for cable diameter 4 – 6 mm or 6 – 8 mm
• Male and female sockets
• Panel mount types for front or rear panel mounting
• Pcb mount types, straight or right angled
• With dip solder contacts of various contact lengths
• Solder connection: 2 – 8, 12 and 14 contacts
• Crimp connection: 2 – 8 contacts
• Coloured back shells optional
• UL registered under file number E 63 093 UL
Our Services
We supply M16 waterproof connector, heavy duty connectors and waog 923 terminals, wago 2060 terminal and other many kinds of terminals..If you need cable harness, we also can supply harness processing, you just need let us now the spec of the cable and the connectors, we will give you a cable harness drawing.
Applications
The connectors could be used in many different kind of area. Such as car, sensor, led light and so on.The connectors are used to be connected with cable, and transmit elcertic current. Because circular connectors are widely used to connect devices in aerospace, so called air plugs, having a current through the large, solid contact, sealing performance, connectivity, excellent shielding effectiveness and other characteristics, in the civilian products applications are more widely used.
Product Tags:
|
|
8 PIN Straight Plastic M16 Waterproof Connector Copper PA66 IP68 Images
|
