Rear Lock Flange Male TPU GF M12 Waterproof Connector 4 PIN IP69K

  • 1
  • 2

Brand Name : Rigoal

Model Number : Panel mounting

Certification : CE ， Rohs , IP68

Place of Origin : China ShenZhen

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 30work day

Packaging Details : 46x30x30

Gender : male

Termination : screw

Insert material : TPU+GF

Contact material : Brass with gold plated

Overmold material : Transparent TPU

Coupling material : Brass with nickel plated

Number of pole : 3pins

Operate temperature : -20℃~+80℃

Degree of protect : IP67/IP68

Standard : IEC 61076-2-101

Contact Now

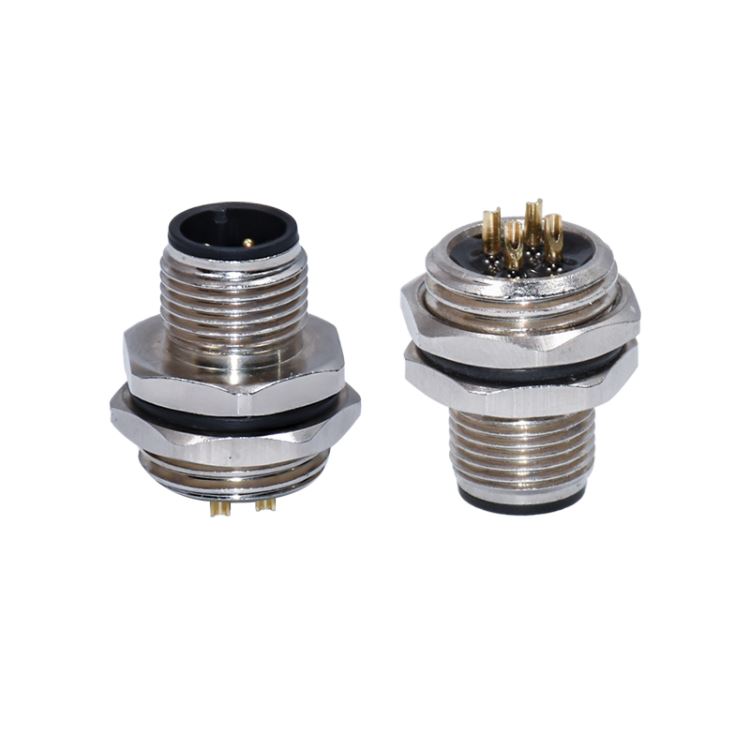

M12 4PIN rear lock flange male waterproof metal connector

Temperature -20℃--85℃
Connector Body Nylon+GF, or TPU
Contact Resistance ≤10mΩ
Insulation Resistance ≥100MΩ at 500V DC
Breakdown Voltage ≥500v/1minute(≤5A)
Contact Gold Plated Brass
Screw Nut Nickle Plated Brass
Waterproof Rate IP66, IP67, IP68

3pins 4pins 5pins 8pins 12pins 17pins panel mount male female waterproof m12 connector

Indus-connector's M12 PCB connectors are front and rear bulkhead mounted M12 connectors designed for easy handling on the PCB and
compatibility with wave soldering processes. M12 PCB connectors include an incorporated wire clip with an integrated PCB retention
feature to secure it in the PCB during the reflow process, individual wires come stripped and pre-tinned ready for soldering.

Standards and Regulations

Termination: solder PCB
Degree of protection: IP67, IP68, IP69K
Rated voltage: 30V~250V
Rated current(40°C): 1.5A~4A
Mechanical operation: >100 mating cycles
Ambient temperature (operation): -25°C~+85°C
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ

Materials

Connector body material: TPU
Pins material: Gold plated
Screw: Brass with nickel plated
O-ring material: Fluorine ring
Glue: Epoxy resin

Environmental Product Compliance
Environmental compliance: RoHS, Reach

Rear Lock Flange Male TPU GF M12 Waterproof Connector 4 PIN IP69K

Advantages

  1. High degree of protection IP67, safe to use on site

  2. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times mating life

  3. Anti-vibration locking screw design

  4. Support samples, retail and bulk orders


Product Tags:

Flange Male M12 Waterproof Connector



TPU GF M12 Waterproof Connector



IP69K 4 PIN Circular Connector
