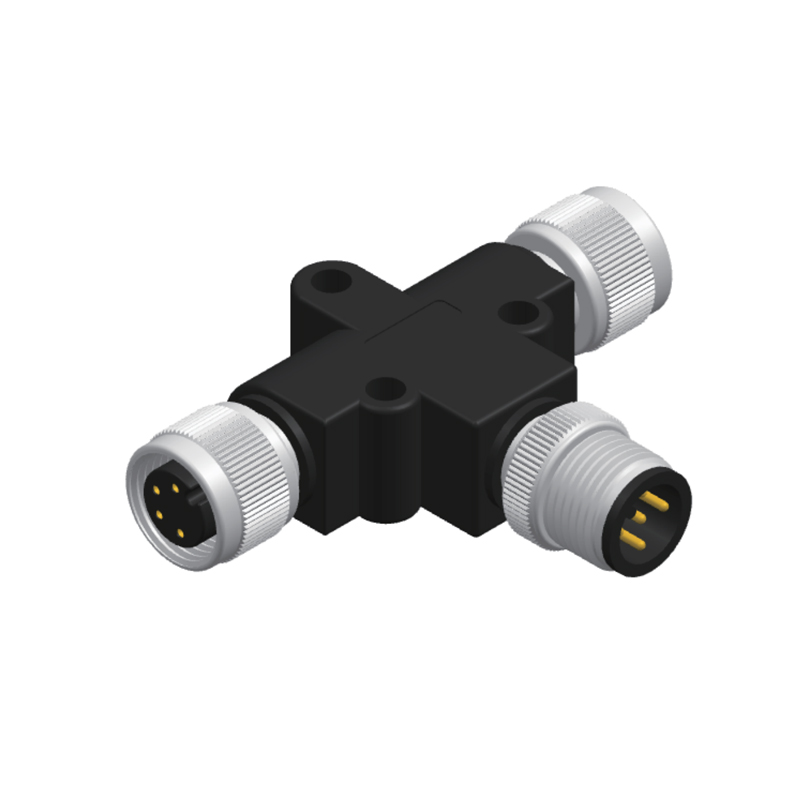

Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector

Product Categories
Shenzhen Rigoal Connector Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector

Brand Name : RIGOAL

Model Number : m12 waterproof connector

Certification : CE，ROHS，ISO9001，REACH

Place of Origin : Shen zhen，China

MOQ : 500

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Product name : IP67 waterproof m12 plastic T type power cable connector

Insert material : TPU+GF

Overmold material : Transparent TPU

Number of pole : 2,3,4,5,6,8,12 pins

Degree of protect : IP67/IP68

Contact material : Brass with gold plated

Contact Now

Rigoal IP67 Hummel 3p 4p 5p Waterproof M12 T Connector

Specification
item
value
Place of Origin
Shen zhen,China
Brand Name
Rigoal connector(RG)
Model Number
4pin female cable connector
Type
M12 T type splitter connector
Application
Automotive
Gender
Female
Pins
30P
Product name
IP67 waterproof m12 plastic T type power cable connector
Termination
screw
Insert material
TPU+GF
Contact material
Brass with gold plated
Overmold material
Transparent TPU
Coupling material
Brass with nickel plated
Number of pole
2,3,4,5,6,8,12 pins
Operate temperature
-20℃~+80℃
Degree of protect
IP67/IP68
Standard
IEC 61076-2-101
Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
Product Description
Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
Product Description

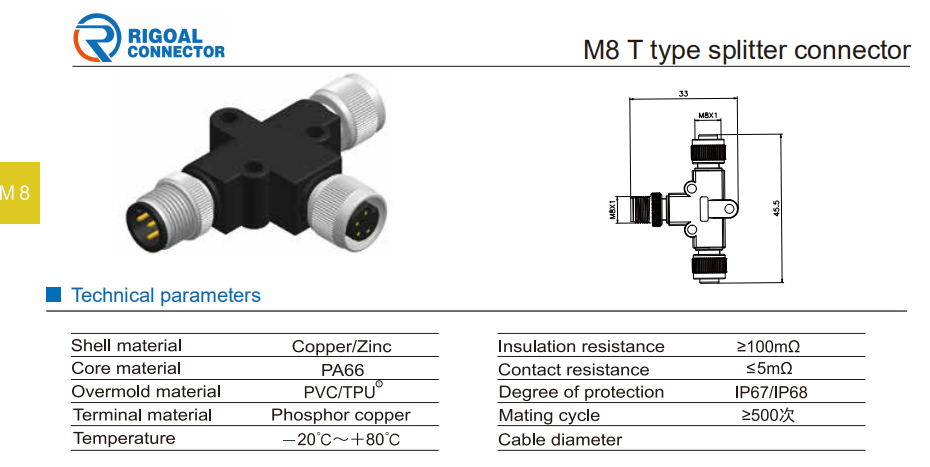

D-Code M8 / M12 4 5 Pin Ip68 Waterproof Thread 90 degree Male to Female T / Y Type Splitter Adapter Power Circular Connector
Supply T Type & Y Type Adapter for mating Panel Mount Recetacle,
Field Wireable Plug & Molding Cable
Advantages :
1. High degree of protection IP67, safe to use on site 2. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times
mating life 3. Anti-vibration locking screw design 4. Support samples, retail and bulk orders
Packing & Delivery
Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
M12 connector, waterproof connector, M12 cable connector with three kinds of package as below: 1.Each piece in one PE bag, then put in a small carton 2.OEM package is avaiable 3.According to customer requirement

PLS FEEL FREE TO CONTACT US FOR FREE SAMPLE !
Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
FAQ
Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013

Q2: How about the certificates?
A:ISO 9001, ISO14001, TUV, UL, RoHS, REACH etc.

Q3: How about the payment terms?
A: we can do 30% deposit , 70% deposit before shipment and balance against shipment

Q4: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q5:why choose us?
1/one of largest connector factory in asia
2/more than 10 years of export experience
3/good quality &factory directly low price
4/more than 10 years manufacture experience accepted OEM&ODM service

Q6:what can you buy from us?
waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as, M5,
M8,M12,M16,M23, D-SUB, RJ45, AISG,SP series connectors, etc.

Q7: what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Rigoal IP67 hummel 3p 4p 5p waterproof M12 t connector

Rigoal 3p 4p 5p M12 Waterproof T Connector IP67 IP68 3 Way T Cable Connector
