7/8 molding type waterproof connector cable
Product Description
Characteristics of 7/8" Series
| General Characteristics |
| Number of contact | 3 | 4 | 5 |

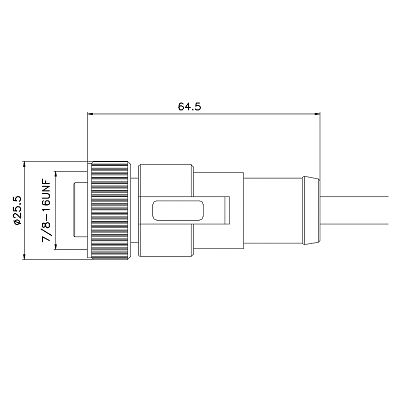

| Locking system | screw 7/8''-16UNF |
| Termination | solder, moulded on cable, screw clamp |
| Wire guage in mm² | max.1.5 |
| Wire guage in AWG | max.16 |
| Shell protection | IP67/IP68 |
| Mechanical operation | >500 mating cycles |
| Upper temperature | +85℃ |
| Lower temperature | -25℃ |
| Electrical Characteristics |
| Rated voltage | 300V |
| Pollution degree | | III | |
| Rated current(40℃) | 12A | 9A | |
| Contact resistance | ≤10mΩ |
| Insulation resistance | ≥100MΩ |
| Materials |
| Pin contact | CuZn |
| Socket contact | CuSn |
| Contact plating | Au |
| Upper temperature | PA66(UL 94V-0) |
| Female insent | PA66(UL 94V-0) |
| Material of cable jacket | PVC or PUR |
| Screw | CuZn |
| Nut | CuZn |
 | 1,Polarity: 3pins, 4pins,5pins 2,Rated voltage: 300V
3,Insulation resistance:≥100MΩ
4,Rated current: 8A
5,Contact resistance:≤5mΩ
6,Ambient temperature:-25℃~+90℃
7,Contacts: Brass with gold plated
8,Insert: TPU+GF
9,Coupling nut/screw: Brass with nickel plated 10,RoHS & REACH Compliance 11,Cable length customized, PUR and PVC cable options
12,Degree of protection: IP67 in locked condition |
 |  |
 |  |
Certifications
Package&Shipping:
1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm
2. OEM/ODM package is available
3. According to customer choice.
