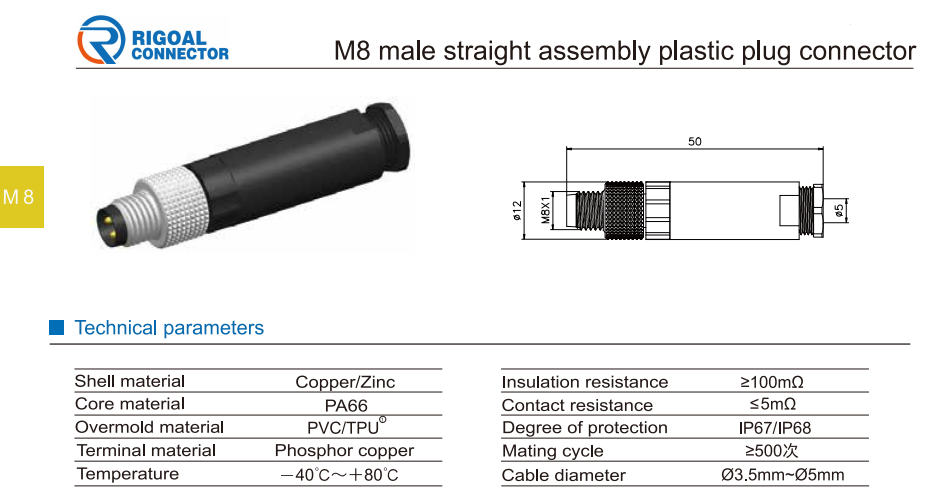

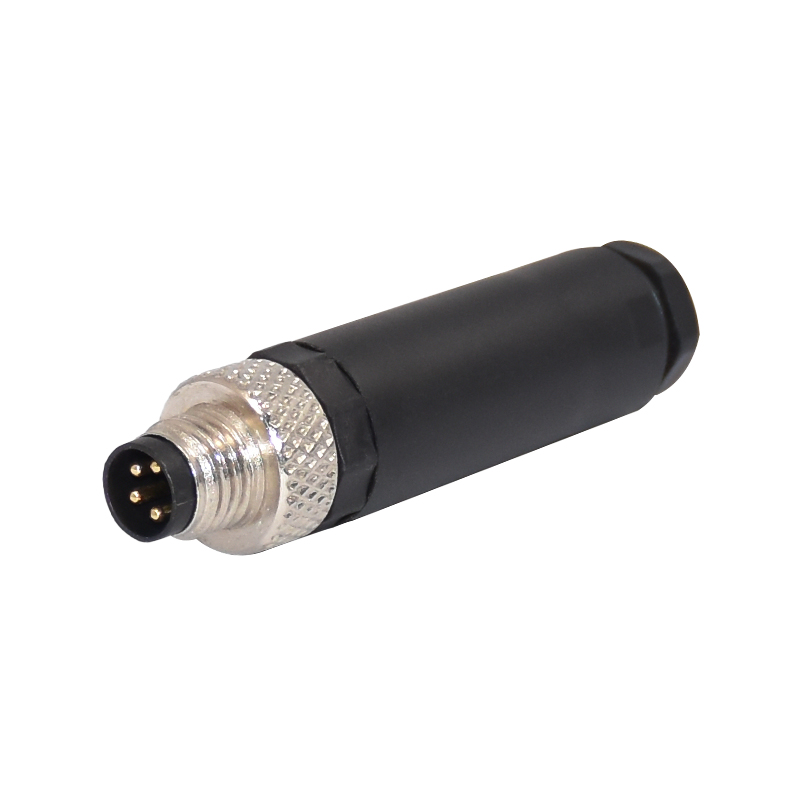

Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug

Brand Name : RIGOAL

Model Number : M8 assembly

Certification : CE ， Rohs , IP68

Place of Origin : Shen zhen,China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 30work day

Packaging Details : 46x30x30

Application : Automotive

Waterproof degree : IP67/IP68

Rated Voltage : 60/30 V

Temperature range : -40~+80

Type : DIN

Gender : male

Connector insert : TPU

Contact Now

Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug
Title goes here.
Available Description:
Stainless steel screw is available
IP67/IP68, RoHS, certificate

Generally Description:
Connector Series: M8
Standard: IEC 61076-2-101
Coding: A
Pins: 3 / 4 pins
Gender:Male&Female
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Ambient Temperature: -25°C~+85°C
Title goes here.
Material:
Connector Body: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Glue: Black epoxy resin
Wire Jacket: PVC

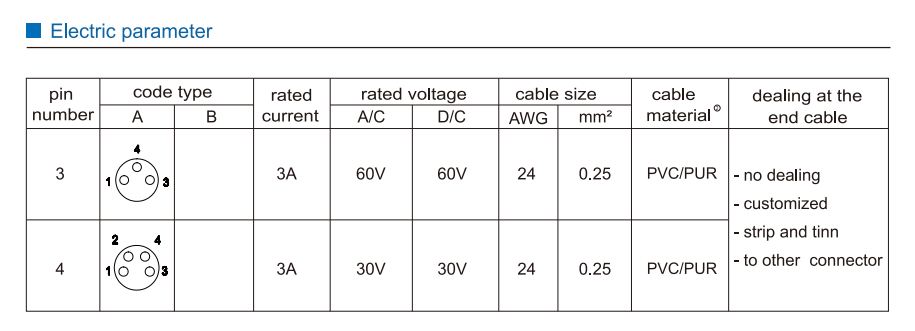

Electrical data:
Rated Current: 1A
Rated Voltage: 60V
Contact Resistance: ≤3mΩ
Insulation Resistance: ≥100MΩ
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug
Specification
item
value
Place of Origin
Shen zhen,China
Brand Name
RIGOAL
Model Number
M8 assembly
Type
DIN
Application
Automotive
Gender
male
Pins
4p, 5P, 3P, 8P, 6P
Coded
A/B
Rated Current
3/1 A
Insert material
PA66+30%GF
Waterproof degree
IP67/IP68
Certification
CE ROHs
Rated Voltage::
60/30 V
Contact material
copper (gold-plated)
Temperature range
-40~+80
Connector insert
TPU
Connector A Housing Gender:
Socket
Packing & Delivery
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
