A Code M12 Waterproof Female Connector 5 Pin Plastic Panel Mount With Wire

Name: A Code M12 Waterproof Female Connector 5 Pin Plastic Panel Mount With Wire
Brand: Rigoal
Price: 1 USD

Wholesale A Code M12 Waterproof Female Connector 5 Pin Plastic Panel Mount With Wire from china suppliers

Brand Name : Rigoal

Model Number : M12 - PM

Certification : ISO9001/ROHS/IP68/CE/REACH

Place of Origin : Guangdong China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs/month

Delivery Time : 3-20day

Packaging Details : 46*30*30

Type : Panel connector

Gender : Male

Material of housing : Brass/Zinc diecasting nickel plated

Material of connector : CuZn,TPU

pin : 3 4 5 8 12 17 pin

Code : A B D X code

Kind : Screw;Solder;PCB;With wire

Contact resistance : ≤10mΩ

way to install : Front lock;Rear lock

Degree of protection : IP68/IP67

Contact Now

M12 A code 5 pin plastic panel mount with wire waterproof female connector

M12 metal panel mount is one of our best-selling products and our manufacturing process is very mature. In order to meet the needs of more customers,we began to sell plastic panel mount,it can be used as a substitute for metal panel,but the price will be more favorable. For product description, we still use metal panel as an example, but most of them also apply to plastic panel,thanks for your check.

M12 panel mount connector Product Specification

Place of Origin	China
	Guangdong
Brand	Rigoal
Series	M8/M12
Pin	3 4 5 8 12 17 pin(M12) 3 4 5 6 8 pin(M8)
Coding	A B D coding
Gender	female/male
Type	Molded/panel mount/Assembly
Rated current	1A for 12 pin/2A for 8 pin/4A for 3 4 5 17 pin(M12) 1.5A for 8 pin/2A for 6 pin/3A for 5 pin/4A for 3 4 pin(M8)
Rated voltage	30V for 8 12 pin/60V for 5 pin/250V for 3 4 17 pin(M12) 30V for 5 6 8 pin/60V for 3 4 pin(M8)
Operating Temperature	-25°C~80°C
Degree of protection	IP67/IP68
Connector locking system	Screw/Solder/PCB/wire
Mechanical operation	>500 mating cycles
Contact resistance	≤10mΩ
Material of connector	CuZn,PA,TPU
Contact plating	Au(gold plating)
Material of housing	Brass/Zinc diecasting nickel plated
Filling material	Epoxy resin
Custom	Acceptable

M12 panel mount connector Products Description

A Code M12 Waterproof Female Connector 5 Pin Plastic Panel Mount With Wire


Gold-Plated Terminals Hardening Treatment Stable Performance Unique Designed >500 cycles mating endurance waterprood rating(IP67/IP68) Durable and Anti-corrosion Perfect O-ring Tightened Sealing Excellent Performance

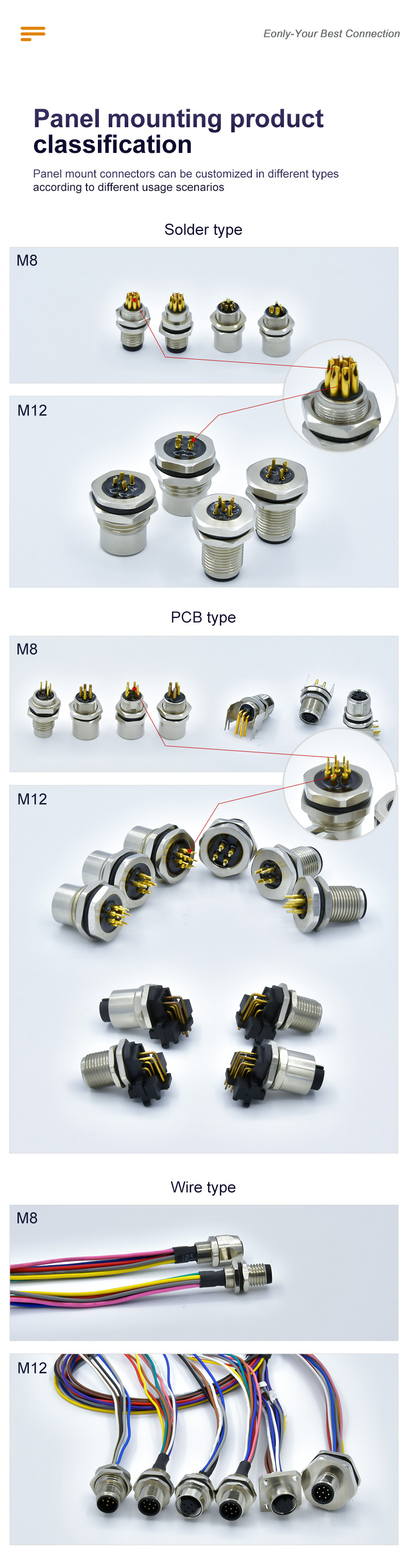

The M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & wire, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.

Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013

Q2: How about the certificates?
A:ISO 9001, CE, RoHS, IP68 etc.

Q3: How about the payment terms?

A: we can do 30% deposit , 70% deposit before shipment and balance against shipment

 Q4: How long is the delivery time?
 A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

 Q5:why choose us?
 one of largest connector factory in asia ;
 more than 10 years of export experience;
 good quality &factory directly low price;
 more than 10 years manufacture experience accepted OEM&ODM service

 Q6:what can you buy from us?
 waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as, M5,
 M8,M12,M16,M23, D-SUB, RJ45, AISG,SP series connectors, etc.

 Q7: what services can we provide?
 Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU；
 Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
 Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
 Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
