RIGOAL M16 Waterproof Connector 2-3-4-5-6-7-8-12-14-16-19-24-Core Male / Female"

Name: RIGOAL M16 Waterproof Connector 23456781214161924Core Male Femalequot
Brand: RIGOAL
Price: 2.9 USD

Wholesale RIGOAL M16 Waterproof Connector 2-3-4-5-6-7-8-12-14-16-19-24-Core Male / Female" from china suppliers

Brand Name : RIGOAL

Model Number : M16 connector

Certification : CE FCC ROHS

Place of Origin : CHINA

MOQ : 1000

Price : USD/2.9-4.9/Piece

Payment Terms : D/A, D/P, T/T

Supply Ability : 50000Pieces

Delivery Time : 15-45WORK DAY

Packaging Details : 28CM+38CM+48CM/CARTON

insert material : pa66+gf20%

Type : m series

IP degree : IP67/IP68

Contact way : screw

Contacts : 2 3 4 5 6 7 8 12 14 16 19 24 Pin Connector

Standard : IEC61076-2-101

Coupling nut/screw : Brass with nickel plated

Application : Sensor or Automation

Product name : RIGOAL

Contact Now

Product Description

Hot sales Din 2 3 4 5 6 7 8 12 14 19 24 pin male female panel mount connector M16 ip67 waterproof connector

M16 Connectors with a rugged metal housing and environmental protection rating of IP67 when mated, this robust M16 DIN connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.

 M16 series connector equivalent as Binder series 423, 723 and 425 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications.

 - Panel-mounted receptacle are available in many styles and mounting methods.
 - Rugged metal shells
 - Straight or right-angle cable connector
 - Right-angle cable connectors adjustable in 4 radial positions
 - Excellent 360° EMI shielding and IP67
 - Internal strain relief
 - 2 to 24 contacts,gold(Au)- or silver(Ag)-plated
 - Metal locking ring; screw locking in accordance to DIN EN 60130-9 / IEC 60130-9

RIGOAL M16 Waterproof Connector 2-3-4-5-6-7-8-12-14-16-19-24-Core Male / Female"



Product Features:

* Connector Series: M16
 * Standard: IEC 61076-2-101
 * Coding: A
 * Pins: 2 3 4 5 6 7 8 12 14 19 24 Pin
 * Connector Design: Plug and Panel mount
 * Connector Locking System: Fix screw* Contacts: Phosphorus copper with gold plated
 * Screw/Nut: Brass with nickel plated

General Information
Model Number	M16-A-P(s)	Product name	M16 waterproof assembly connector
Type	DIN	Code	A coded
Gender	Male and Female	Contact Resistance	≤5mΩ
Rated Current	5A/6A/7A	Rated Voltage	125/250V
Contact material	Brass with gold plated	Coupling nut	Brass with nickel plated screw
Termination Style	Screw-joint / Solder Type	Certificate	ISO9001/CE/ROHS
Protection level	IP67/IP68 Waterproof	Temperature Range	-25℃~85 ℃

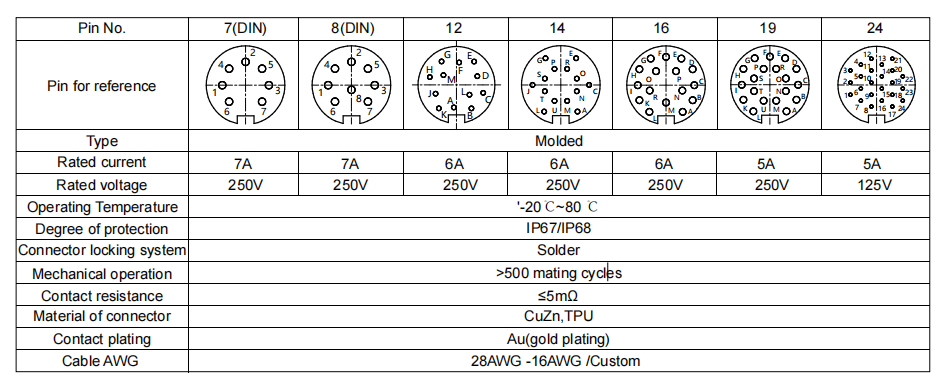

Technical Data

Why Choose Us

Packing & Delivery

Packaging:
 1.Our standard packaging: * About 50pcs put in a plastic box
 * Wrap the product with thin film along with the plastic box
 * Put all boxes in a small carton,the size of carton is 46*30*30 cm
 2.OEM/ODM package is available.
 Shipping:
 According to customer request, we can choose different convenient shipping way.

Certifications

Company Profile

About US
Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficient manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on , they are equivalent to some world-famous brands.

 Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers. Our philosophy and purpose is: Customer Foremost, Service First,Quality First.
